Rubber floor mounts
Rubber-metal vibration damper for equipment from 100 to 1,500 kg per mount.
Deflection VIB 1-5 Series rubber-metal dampers: protection and stability
Deflection VIB 1-5 Series rubber-metal dampers isolate equipment from shock and vibration and keep it stable, even in mobile applications. They suit diesel generator sets, compressors, fans and air-conditioning units, and provide reliable isolation for a range of industrial and HVAC equipment.
| Model | Max. load (kg) | Max. load (lb) | Deflection (mm) | Color mark |
|---|---|---|---|---|
| VIB1-100 | 100 | 220 | 2 | blue |
| VIB1-150 | 150 | 331 | 2 | grey |
| VIB1-200 | 200 | 441 | 2 | red |
| VIB1-300 | 300 | 661 | 2 | green |
| VIB2-120 | 120 | 265 | 2 | blue |
| VIB2-150 | 150 | 331 | 2 | grey |
| VIB2-180 | 180 | 397 | 2 | red |
| VIB2-280 | 280 | 617 | 2 | green |
| VIB3-275 | 275 | 606 | 4 | blue |
| VIB3-375 | 375 | 827 | 4 | grey |
| VIB3-450 | 450 | 992 | 4 | red |
| VIB3-650 | 650 | 1,433 | 4 | green |
| VIB4-300 | 300 | 661 | 4 | blue |
| VIB4-400 | 400 | 882 | 4 | grey |
| VIB4-600 | 600 | 1,323 | 4 | red |
| VIB4-750 | 750 | 1,653 | 4 | green |
| VIB5-500 | 500 | 1,102 | 6 | blue |
| VIB5-700 | 700 | 1,543 | 6 | grey |
| VIB5-1200 | 1,200 | 2,646 | 6 | red |
| VIB5-1500 | 1,500 | 3,307 | 6 | green |
| Size | Cup Ø D | Hole spacing A | Base length K | Height H | Hole Ø d | Thread G |
|---|---|---|---|---|---|---|
| VIB1 | 61.5 | 84 | 110 | 35 | 9 | M12 |
| VIB2 | 79 | 110 | 130 | 30 | 9 | M10 |
| VIB3 | 108 | 144 | 172 | 38 | 13.5 | M16 |
| VIB4 | 121 | 158 | 186 | 42 | 13.5 | M16 |
| VIB5 | 142 | 182 | 212 | 48 | 13.5 | M16 |

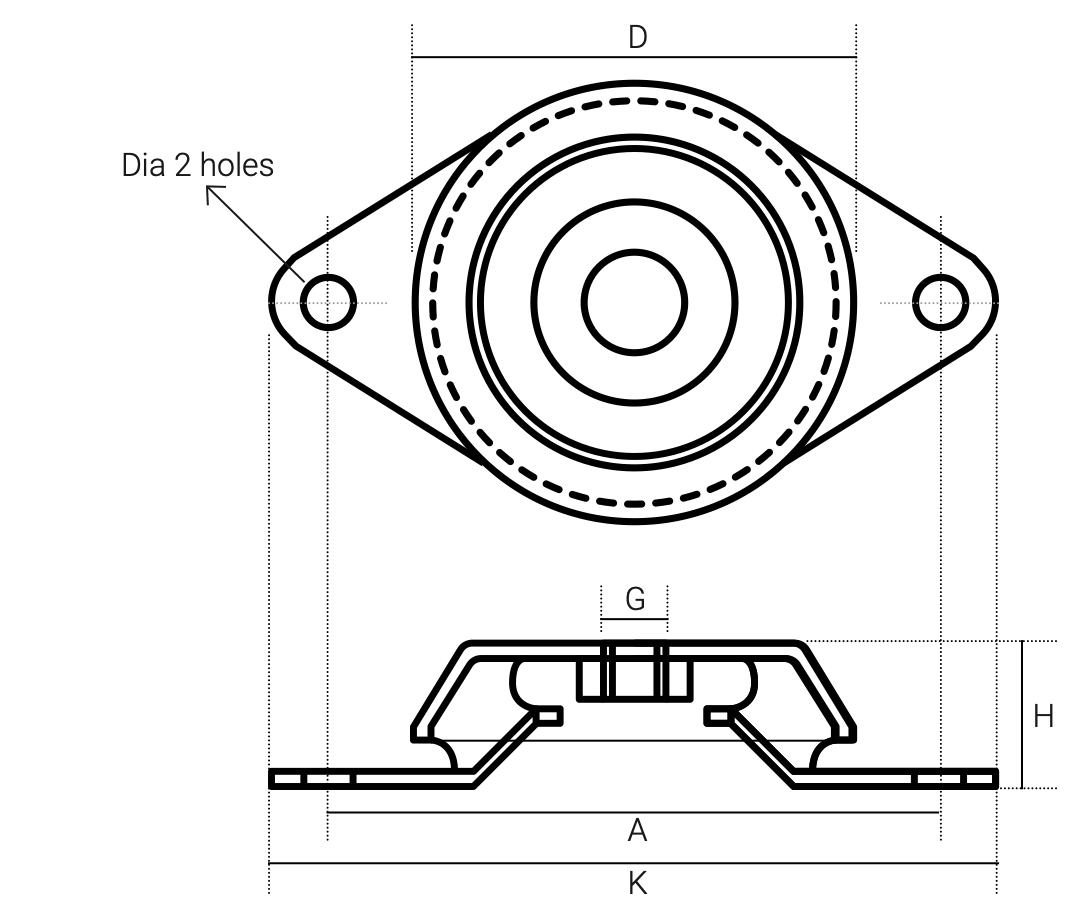

All dimensions in millimetres.
A compact isolator that combines a metal frame and a rubber element. It fastens under the equipment to absorb vibration, and is a simple, economical solution.
The VIB 1-5 Series covers the heaviest loads, from 100 to 1,500 kg per damper. The VIBS 3-7 Series is a compact model for light loads, up to 50 kg per damper. The choice depends on the weight of the equipment divided by the number of support points.
Diesel generator sets, reciprocating and screw air compressors, fans and motor units, centrifuges, air-conditioning units and combustion engines.
They bolt between the equipment and its base. The PDF technical sheet gives the dimensions, hole spacing and thread for each size.
