Spring & neoprene hangers
Spring hanger from the SH family, SHE1 variant, for mechanical equipment suspension applications.
Deflection SHE1 Series spring hangers are designed to reduce vibration from suspended HVAC equipment. Built with a heavy-duty steel housing and high-quality steel springs, powder-coated and color-coded for quick identification, they include rubber washers that distribute the load evenly for effective vibration isolation.
Used for a wide range of suspended HVAC equipment such as fan coil units, air handling units, fans, pumps and chillers.
| Model | Rated load (lb) | Rated load (kg) | Deflection (in) | Spring color |
|---|---|---|---|---|
| SHE1 40 | 40 | 18 | 1.00 | pink |
| SHE1 65 | 65 | 30 | 1.00 | orange |
| SHE1 75 | 75 | 34 | 1.00 | black |
| SHE1 110 | 110 | 50 | 1.00 | blue |
| SHE1 150 | 150 | 68 | 1.00 | brown |
| SHE1 175 | 175 | 80 | 1.00 | green |
| SHE1 215 | 215 | 98 | 1.00 | white |
| SHE1 245 | 245 | 111 | 1.00 | purple |
| SHE1 300 | 300 | 136 | 1.00 | yellow |
| SHE1 400 | 400 | 181 | 1.00 | red |
| SHE1 465 | 465 | 210 | 1.00 | dark brown |

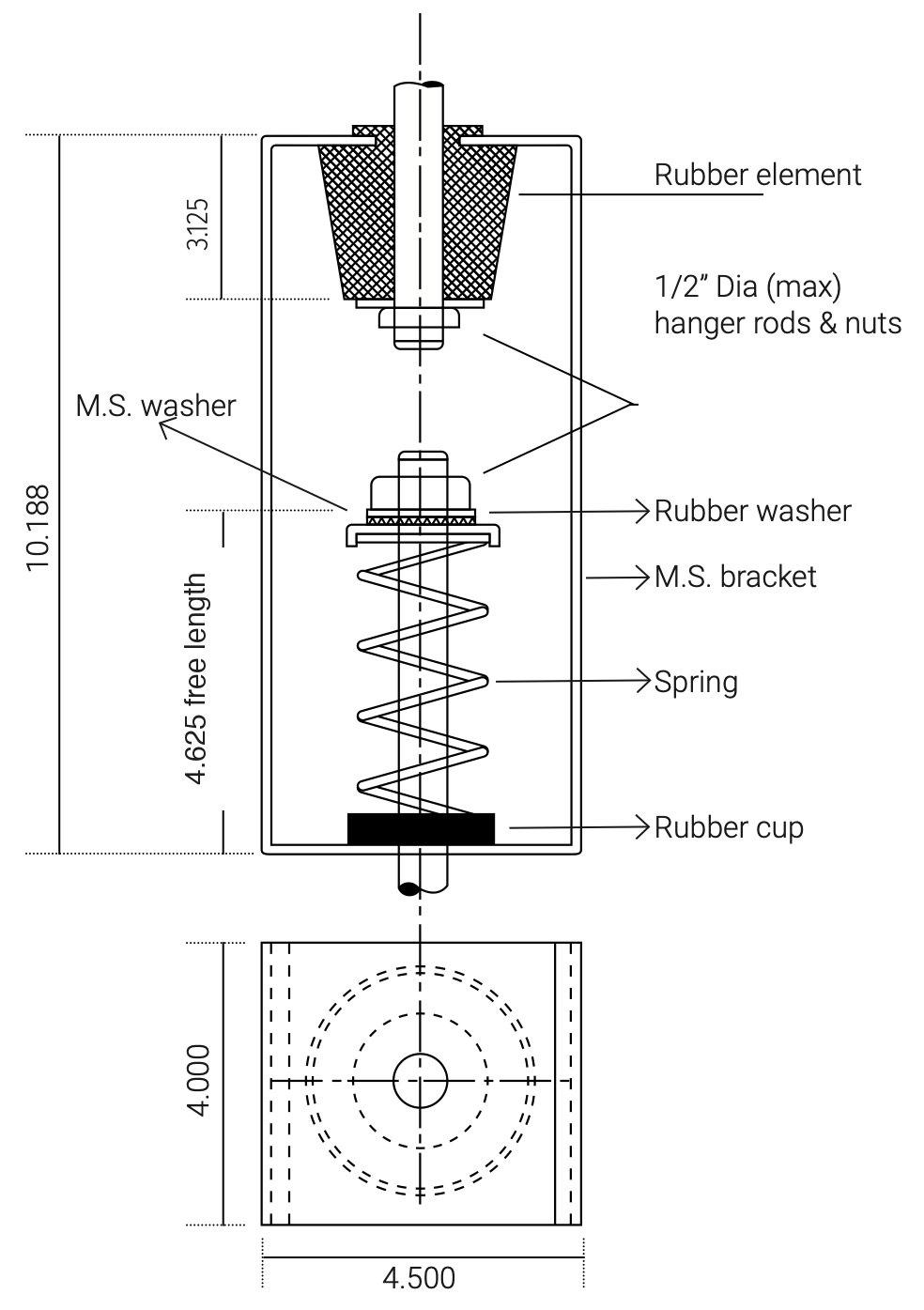

The SHE1 Series is a variant of the SH family that combines spring isolation with a rubber element, for suspending mechanical equipment, ducts and piping.
The SHE1 differs in its internal configuration. See the PDF technical sheet to compare capacities and dimensions, or ask our team which variant suits your application.
Suspended fans, ventilation ducts, mechanical piping and small ceiling-hung HVAC equipment.
Use the “Request a quote” button and give the quantity and the load per suspension point. We reply within 24 to 48 business hours.
