Spring & neoprene hangers

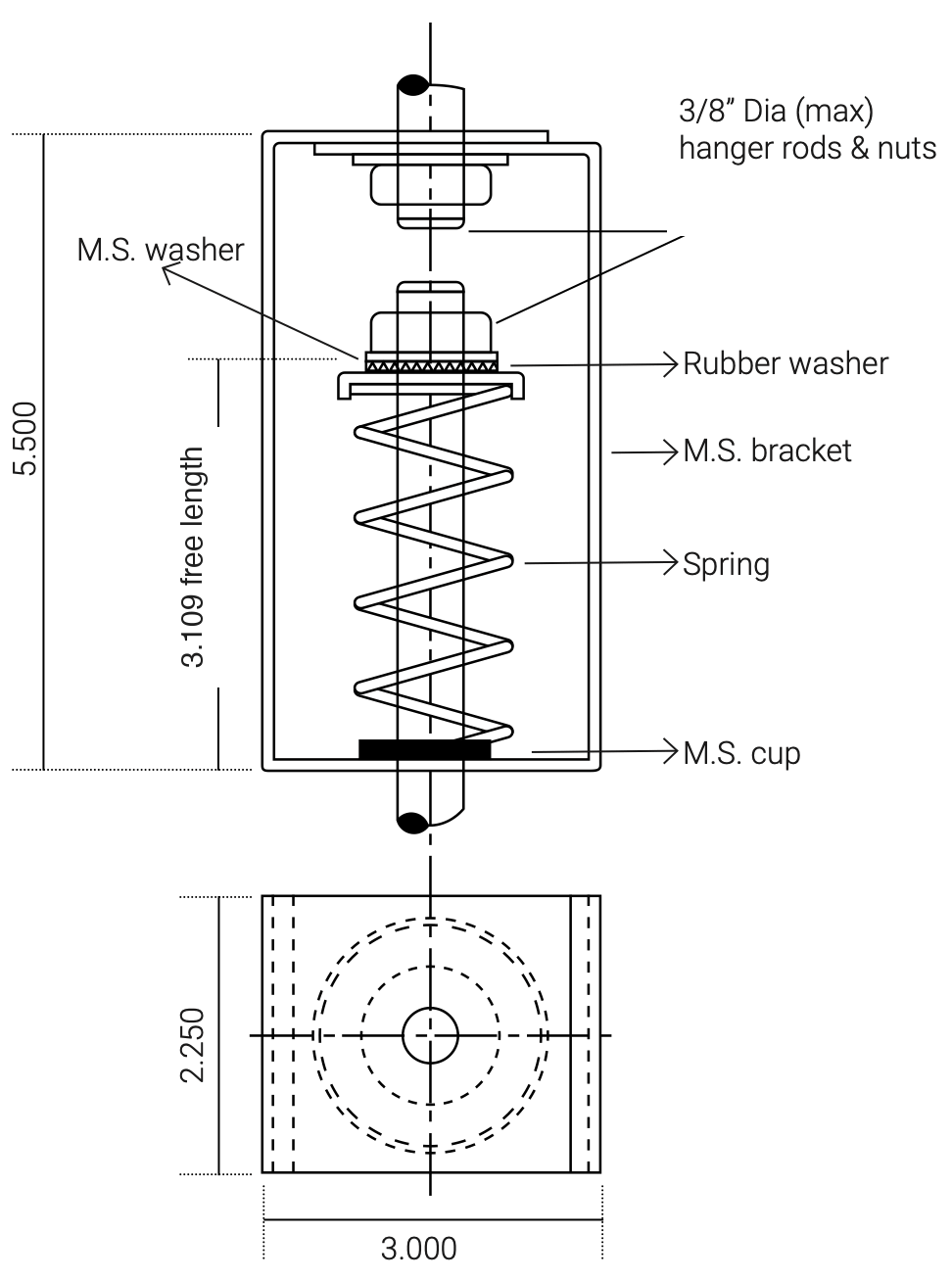

Spring hanger isolator from the SH family, SHM configuration.
Deflection SHM Series spring hangers: performance and reliability
Deflection SHM Series spring hangers are designed to isolate vibration from a wide range of HVAC equipment. Built with a heavy-duty steel housing and high-quality steel springs, color-coded for easy identification, they distribute the load evenly. They suit ventilation units, pumps, chillers and more.
Used for a wide range of suspended HVAC equipment such as fan coil units, air handling units, fans, pumps and chillers.
| Model | Rated load (lb) | Rated load (kg) | Deflection (in) | Spring color |
|---|---|---|---|---|
| SHM 25 | 25 | 11 | 1.25 | silver |
| SHM 40 | 40 | 18 | 1.25 | pink |
| SHM 65 | 65 | 30 | 1.25 | red |
| SHM 110 | 110 | 50 | 1.20 | blue |
| SHM 175 | 175 | 80 | 1.00 | brown |
| SHM 245 | 245 | 111 | 0.80 | white |
| SHM 330 | 330 | 150 | 0.50 | yellow |
| SHM 465 | 465 | 210 | 0.50 | black |
| SHM 660 | 660 | 300 | 0.50 | green |
The SHM Series is a configuration of the SH spring hanger family, for vibration-isolated suspension of mechanical equipment, ducts and piping.
The family has several configurations (SH, SHE1, SHL1, SHL2, SHM) that differ in housing, load range and whether they have a limiter. The PDF technical sheet details the SHM models.
Fans, ducts, piping and suspended HVAC equipment that needs spring vibration isolation.
Yes. Send us your loads per point and your installation constraints, and our team will recommend the right model.
