Spring & neoprene hangers
Spring hanger isolator for mechanical equipment requiring enhanced vibration isolation.
Deflection SH Series spring hangers are designed to reduce vibration from suspended HVAC equipment. Built with a heavy-duty steel housing and high-quality steel springs, powder-coated and color-coded for easy identification, they distribute the load evenly and provide durable, reliable isolation.
Used for a wide range of suspended HVAC equipment such as fan coil units, air handling units, fans, pumps and chillers.
| Model | Rated load (lb) | Rated load (kg) | Deflection (in) | Spring color |
|---|---|---|---|---|
| SH 20 | 20 | 9 | 0.75 | pink |
| SH 45 | 45 | 20 | 0.75 | black |
| SH 70 | 70 | 32 | 0.75 | red |
| SH 110 | 110 | 50 | 0.75 | blue |
| SH 175 | 175 | 80 | 1.00 | brown |

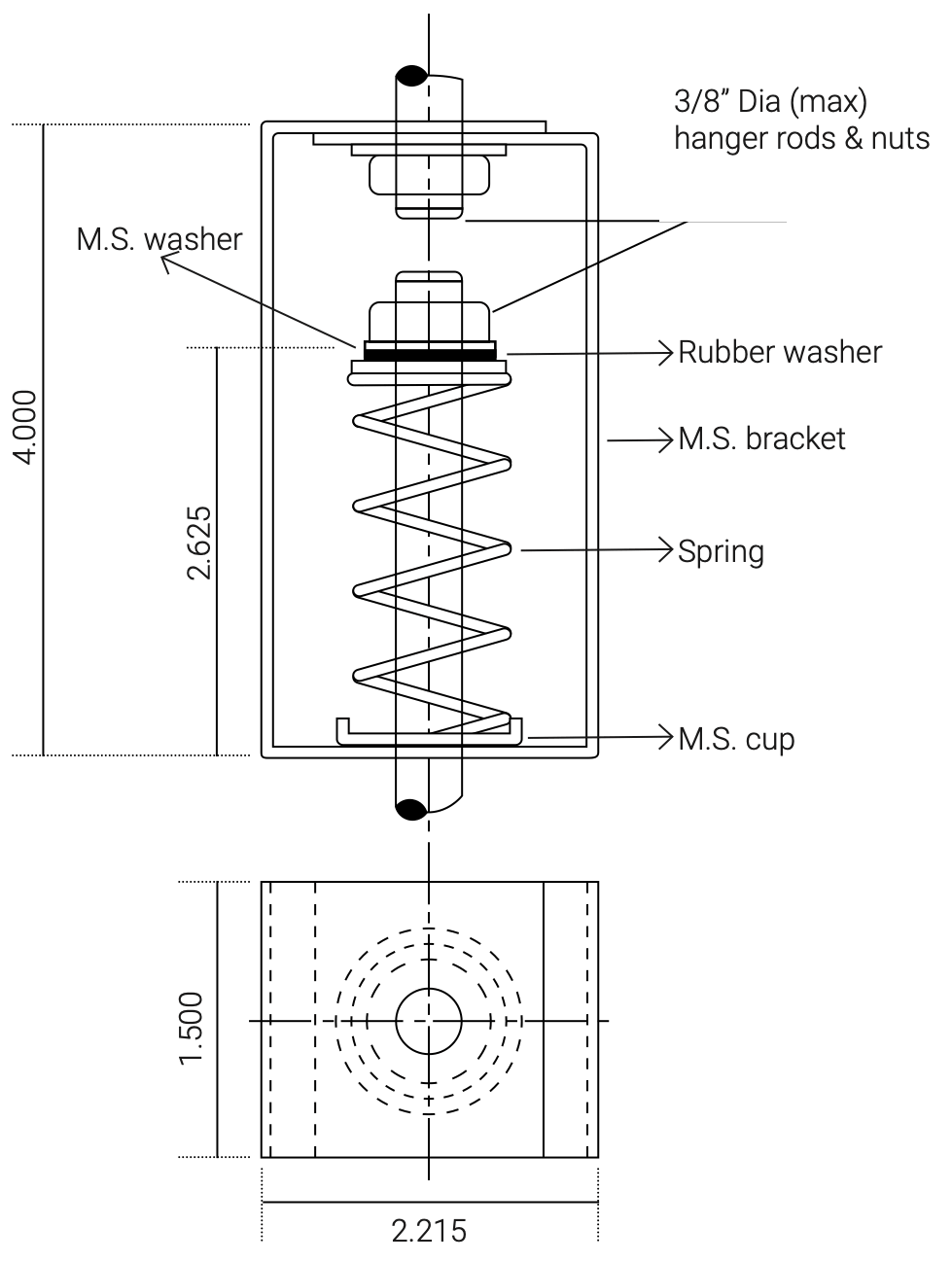

The SH Series is a spring hanger that mounts between the structure and the hanger rod of mechanical equipment, a duct or piping to block the transmission of vibration.
The SHL1 and SHL2 series add a built-in travel limiter, useful when the load varies (draining a system, maintenance) or when travel must be controlled. The SH Series is the standard configuration.
Each suspension point must be sized for the load it carries and the deflection required. The PDF technical sheet gives capacities by model, and our team can validate your selection from your drawings.
Yes, installation by RBQ-certified technicians is offered as an option as part of a turnkey project.
