Spring & neoprene hangers
Rubber hanger for hanging ducts, piping and light mechanical equipment.
Deflection EHD hangers are designed to reduce vibration from suspended HVAC equipment. Their neoprene elements, housed in heavy-duty steel brackets, provide durable isolation and prevent metal-to-metal contact. The double-deflection design gives reliable vibration control.
Used for suspended HVAC equipment.
| Model | Max. load (lb) | Max. load (kg) | Defl. (in) | A | B | C | D | Rod |
|---|---|---|---|---|---|---|---|---|
| EHD1 blue | 33 | 15 | 0.4 | 3 | 1 ⅜ | 2 | 2 ¼ | ⅜ |
| EHD1 red | 44 | 20 | 0.4 | 3 | 1 ⅜ | 2 | 2 ¼ | ⅜ |
| EHD1 green | 66 | 30 | 0.4 | 3 | 1 ⅜ | 2 | 2 ¼ | ⅜ |
| EHD1 black | 110 | 50 | 0.4 | 3 | 1 ⅜ | 2 | 2 ¼ | ⅜ |
| EHD2 blue | 130 | 59 | 0.5 | 4 ½ | 1 ⅞ | 2 ¼ | 3 | ½ |
| EHD2 red | 160 | 73 | 0.5 | 4 ½ | 1 ⅞ | 2 ¼ | 3 | ½ |
| EHD2 green | 230 | 104 | 0.5 | 4 ½ | 1 ⅞ | 2 ¼ | 3 | ½ |
| EHD2 black | 370 | 168 | 0.5 | 4 ½ | 1 ⅞ | 2 ¼ | 3 | ½ |

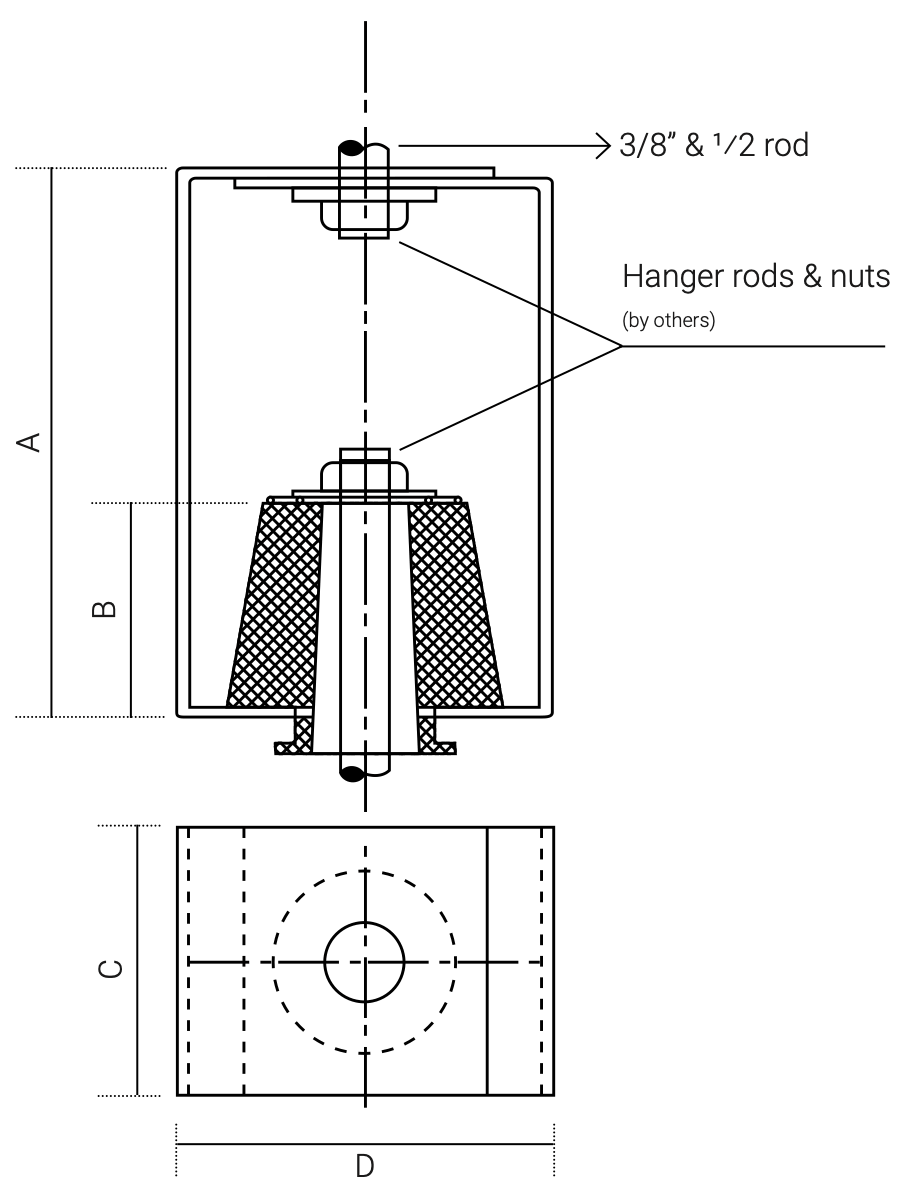

Dimensions A to D and rod diameter in inches.
The isolating element of the EHD Series is neoprene. It is designed to suspend piping, air ducts and light mechanical equipment while preventing their vibration from reaching the ceiling structure.
Neoprene (EHD Series) suits lighter loads, from 33 to 370 lb, and high-frequency vibration. For heavier loads or more deflection, a spring model (SH, SHL1, SHL2, SHM series) is recommended.
The choice depends on the weight carried at each suspension point. See the PDF technical sheet for load capacities by model, or send us your equipment specifications for a recommendation.
The EHD Series is one of the products distributed by Deflection. Availability depends on inventory. Contact us for a lead time based on the quantity required.
