SHL2 variant of the spring hanger isolator with limiter, for loads and applications different from the SHL1.
Deflection SHL2 Series spring hangers: robust, effective vibration isolation
Deflection SHL2 Series spring hangers are designed to reduce vibration from suspended HVAC equipment. Built with a heavy-duty steel housing and high-quality powder-coated steel springs, color-coded for easy identification, they distribute the load evenly and provide a durable, reliable isolation solution.
Used for a wide range of suspended HVAC equipment such as fan coil units, air handling units, fans, pumps and chillers.
| Model | Rated load (lb) | Rated load (kg) | Deflection (in) | Spring color |
|---|---|---|---|---|
| SHL2 200 | 200 | 91 | 2.25 | white |
| SHL2 375 | 375 | 170 | 2.00 | red |
| SHL2 500 | 500 | 227 | 2.00 | black |
| SHL2 700 | 700 | 318 | 2.00 | green |
| SHL2 900 | 900 | 408 | 2.00 | orange |
| SHL2 1100 | 1,100 | 499 | 2.00 | brown |
| SHL2 1300 | 1,300 | 590 | 2.00 | blue |
The SHL2 Series is a spring hanger with a built-in travel limiter, covering different loads and applications from the SHL1 Series.

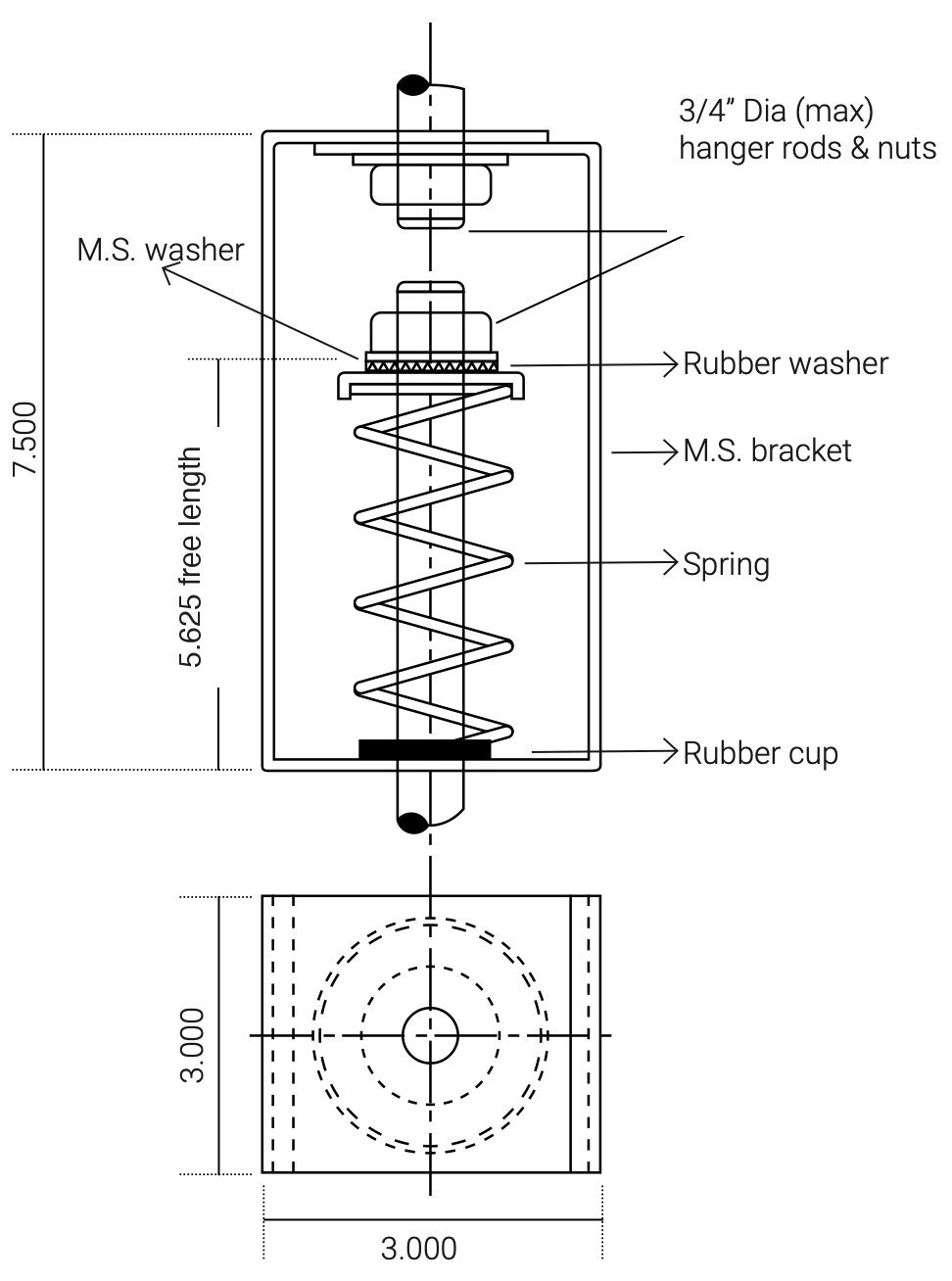

Both series have the same housing and dimensions. They differ in spring deflection (2 in for the SHL2, 0.80 to 1.40 in for the SHL1) and in load range (200 to 1,300 lb for the SHL2, 55 to 735 lb for the SHL1).
Suspending mechanical equipment and services whose load varies in operation, when spring travel must be limited.
Availability depends on inventory. Contact us with the quantity and models required for a precise lead time.
