Pump stand system with built-in vibration isolation for industrial and commercial pumping installations.
Deflection VPS Series pump stands: stability and protection

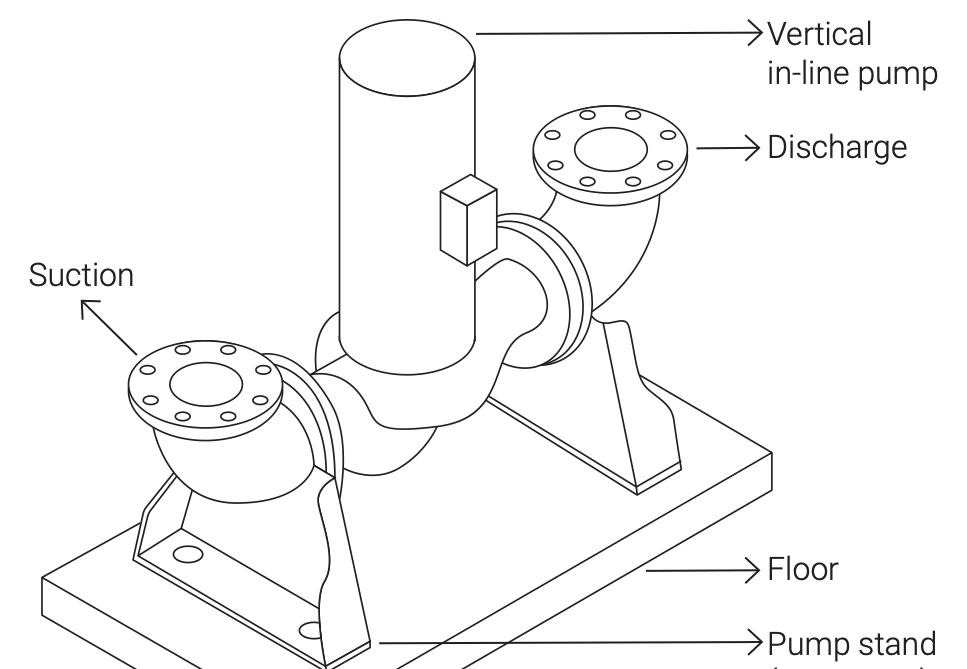

Deflection VPS Series pump stands are designed for stable support. Made of high-strength steel with a powder-coated enamel finish for corrosion protection, their bolt holes match ANSI 125 cast iron flange dimensions. Installed in pairs on vertical in-line pumps, they are a durable, reliable solution.

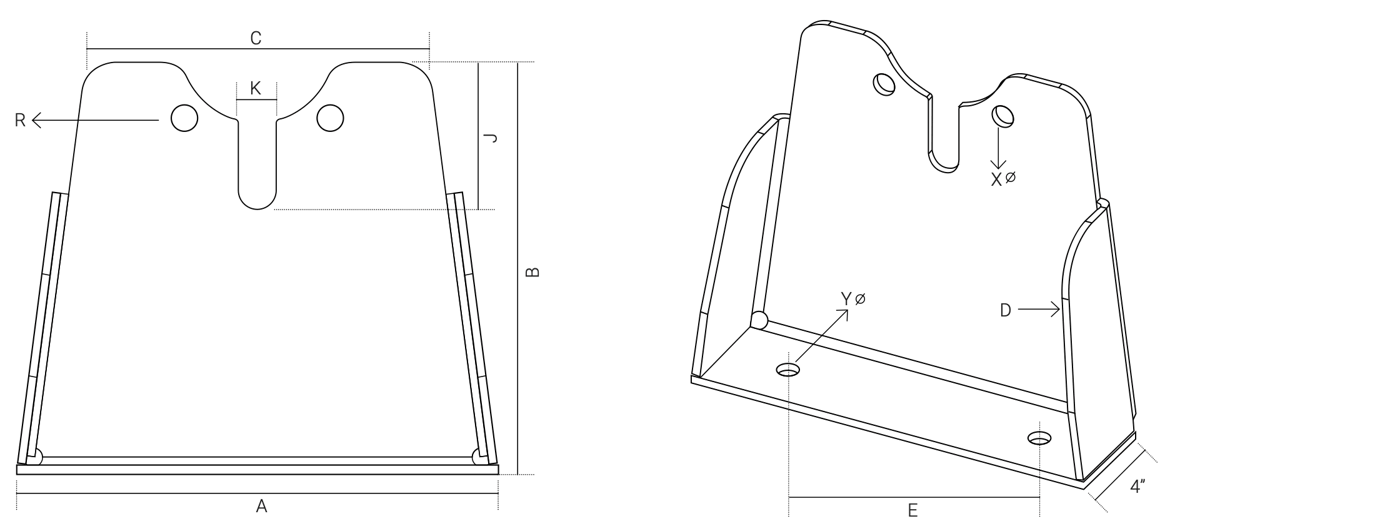

| Model | Size | A | B | C | D | E | X | Y | R | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VPS 1.5 | 1 ½ | 14 | 12 | 10 ¼ | ¼ | 9 | ⅝ | ¾ | 1 15⁄16 | 2.94 | 0.94 |
| VPS 2 | 2 | 14 | 12 | 10 ¼ | ¼ | 9 | ¾ | ¾ | 2 ⅜ | 3.50 | 1.06 |
| VPS 2.5 | 2 ½ | 14 | 12 | 10 ¼ | ¼ | 9 | ¾ | ¾ | 2 ¾ | 4 | 1.06 |
| VPS 3 | 3 | 14 | 12 | 10 ¼ | ¼ | 9 | ¾ | ¾ | 3 | 4 ¼ | 1.06 |
| VPS 4 | 4 | 18 | 15 | 15 9⁄16 | ⅜ | 12 | ¾ | ⅞ | 3 ¾ | 5 | 1.06 |
| VPS 5 | 5 | 18 | 15 | 15 9⁄16 | ⅜ | 12 | ⅞ | ⅞ | 4 ¼ | 5.56 | 1.19 |
| VPS 6 | 6 | 18 | 15 | 15 9⁄16 | ⅜ | 12 | ⅞ | ⅞ | 4 ¾ | 6.06 | 1.19 |
| VPS 8 | 8 | 18 | 15 | 15 9⁄16 | ⅜ | 12 | ⅞ | ⅞ | 5 ⅞ | 7.31 | 1.19 |
A support system designed to seat a pump and its piping while incorporating vibration isolation, which keeps pumping vibration from reaching the structure.
A pump that is not isolated transmits its oscillations to the slab and the piping: structure-borne noise and premature wear of fittings and bearings. The VPS stand separates the pump from the structure.
It covers common industrial and commercial pumping installations. Send us the model and weight of your pump to validate the selection.
Yes. It combines with grommets at the fastening points and flexible connectors on the piping for complete isolation.
