Deflection isolation grommets: effective shock and vibration reduction
Deflection isolation grommets are designed to dampen vibration and reduce shock in motors, fans, blowers and other mechanical equipment. They protect your systems, keep performance consistent and extend equipment life.

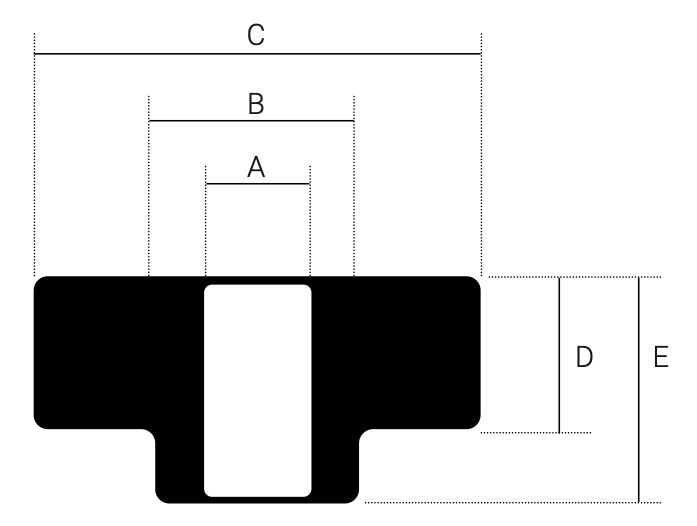

| Ref. | Dimension | (in) | (mm) |
|---|---|---|---|
| A | Inside diameter | ⅜ | 9.5 |
| B | Step diameter | 21⁄32 | 16.7 |
| C | Outside diameter | ⅞ | 22.2 |
| D | Head height | 5⁄16 | 7.9 |
| E | Total height | ⅜ | 9.5 |

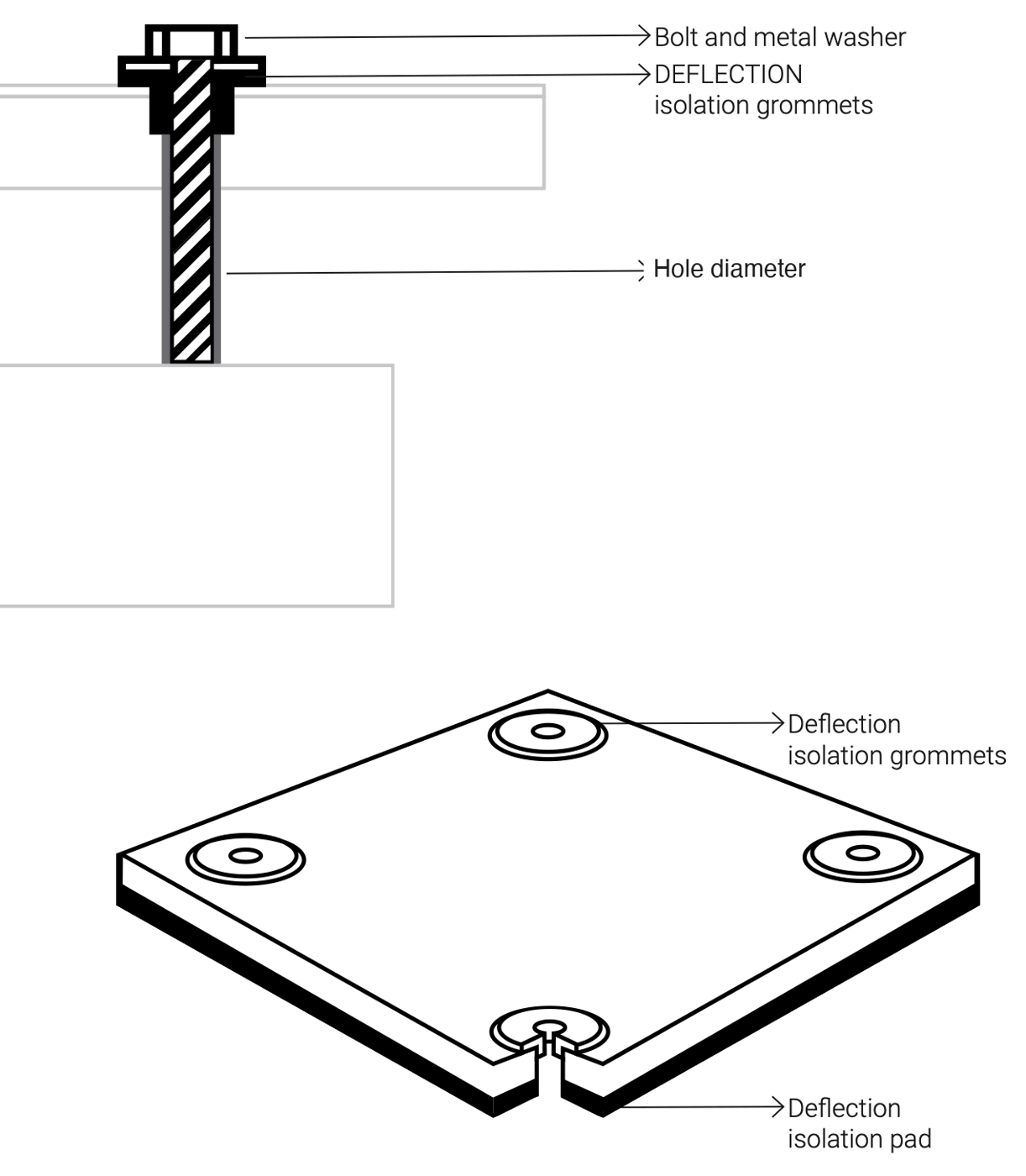

They isolate the fastening points. Placed between the bolt and the equipment, they prevent vibration from bypassing the isolators through the hardware.
Whenever isolated equipment has to be bolted to its base. Without isolation grommets, the rigid fastening cancels part of the effect of the pads or isolators.
They are available in various quantities, depending on the project. Give the number of fastening points in your quote request.
The grommets are made of elastomer. Dimensions are given in the PDF technical sheet.
