VSR1 Series – Seismic Floor Isolator

Name: VSR1 Series – Seismic Floor Isolator
Brand: Deflection

Spring seismic floor isolator, VSR1 configuration.

Deflection VSR1 Series isolators: reliable isolation

Deflection VSR1 Series isolators are designed to reduce vibration from industrial equipment. Built from solid coated steel, they include a leveling device and non-skid pads for a stable installation. With a load capacity of 200 to 2,800 lb and a 2 in deflection, they suit compressors, fans, pumps, chillers, cooling towers and other HVAC equipment.

Request a quote 📄 Technical sheet

Technical data

200–2,800 lbRated load (91–1,270 kg)

2 inStatic deflection (51 mm)

15 modelsColor-coded springs

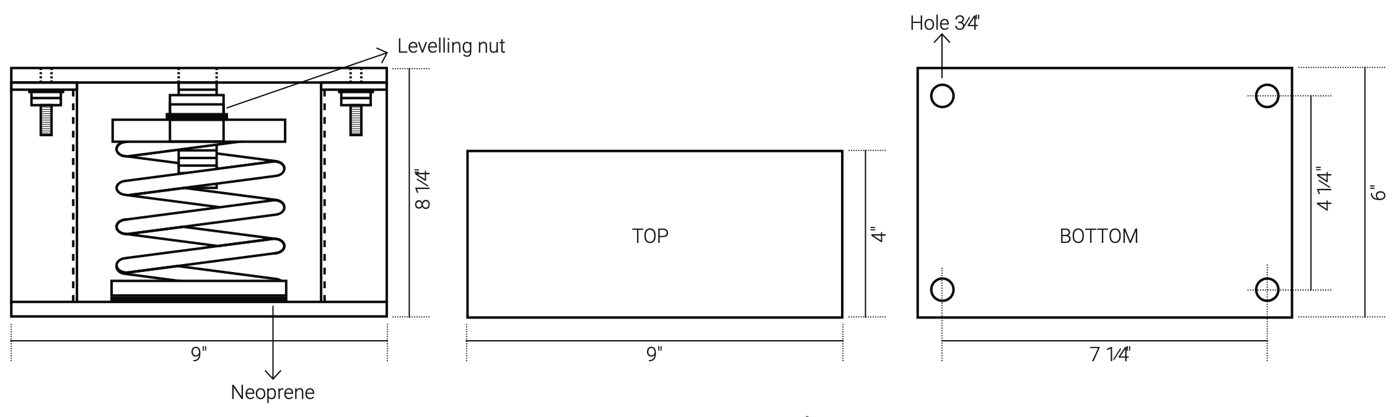

Dimensions in inches. Mounting holes ¾". Neoprene pad under the housing.

Description

Housing fabricated from solid steel.
Springs made from spring steel, zinc-electroplated or powder-coated.
Includes a leveling nut.
Load capacity from 200 to 2,800 lb (91 to 1,270 kg).
Supplied with non-skid rubber pads.
Color-coded springs for quick, easy identification.
Supplied with a base plate for installation.
2" static deflection on all models.

Isolators must be welded to the equipment.

Application

Used for a wide range of HVAC equipment such as compressors, air handling units, fans, pumps, chillers and cooling towers.

Selection table

Model	Rated load (lb)	Rated load (kg)	Deflection (in)	Max. horizontal housing (g)*	Spring color
VSR1 200	200	91	2.00	21.0	yellow
VSR1 300	300	136	2.00	15.1	dark blue
VSR1 400	400	181	2.00	11.3	dark brown
VSR1 650	650	295	2.00	7.0	red
VSR1 900	900	408	2.00	4.8	dark green
VSR1 1200	1,200	544	2.00	3.6	orange
VSR1 1400	1,400	635	2.00	3.3	black
VSR1 1550	1,550	703	2.00	3.4	grey
VSR1 1650	1,650	748	2.00	3.4	white
VSR1 1800	1,800	816	2.00	3.4	purple
VSR1 2100	2,100	953	2.00	2.7	light green
VSR1 2200	2,200	998	2.00	2.5	light blue
VSR1 2500	2,500	1,134	2.00	2.5	light brown
VSR1 2600	2,600	1,180	2.00	2.3	silver
VSR1 2800	2,800	1,270	2.00	2.2	maroon

* Maximum horizontal g-force the housing can withstand.

Frequently asked questions

What is the VSR1 Series isolator?

A seismic spring floor isolator for floor-mounted mechanical equipment, providing vibration isolation and restraint during an earthquake.

What is the difference between the VSR and SM families?

Both families do the same job (isolation plus seismic restraint), with different housing designs and load ranges. The PDF technical sheets let you compare for your equipment.

What equipment is the VSR1 used for?

Compressors, pumps, fans, chillers and other floor-mounted HVAC equipment in seismic zones.

How do I choose between VSR1 and VSR2?

By the load per isolator and the dimensions required. See both technical sheets or ask for a recommendation.
