Rubber pads
Anti-vibration pad from the RSR family for common industrial applications.

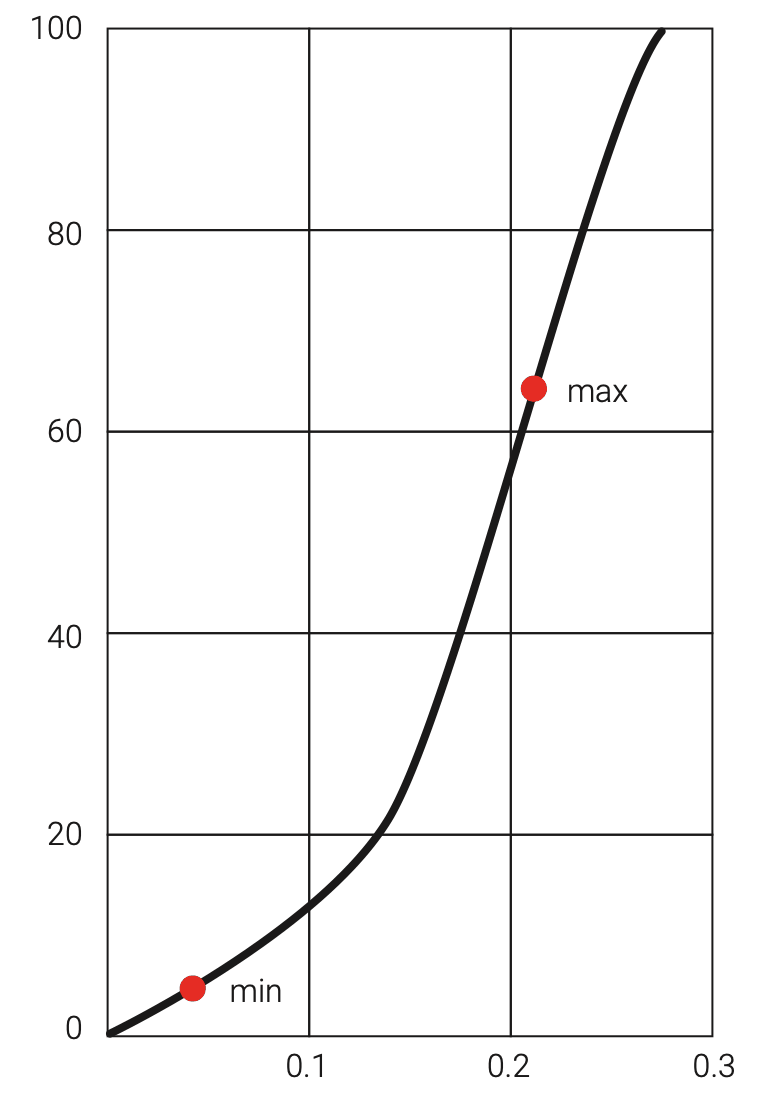

Our RSR Series (rubber-steel-rubber) multi-layer rubber pads have a steel plate that distributes the load evenly. Maximum load is 60 psi, with a deflection of 0.21 in. No bolting is required. They reduce vibration and noise and are recommended for pumps, motors, air-conditioning units, generators, fans, chillers and cooling towers.
Used for pumps, motors, air-conditioning units, generators, fans, chillers and cooling towers.
| Size (in) | Rated load per pad (lb) | (kg) |
|---|---|---|
| 2 x 2 | 200 | 91 |
| 2 x 4 | 400 | 181 |
| 3 x 3 | 450 | 204 |
| 4 x 4 | 800 | 363 |
| 6 x 6 | 1,800 | 816 |
The RSR rubber pad goes under mechanical equipment to dampen the vibration transmitted to the floor in common industrial applications.
The RSR-H is the same construction with a ⅝ in center hole for bolting. The capacity is identical: 60 psi maximum.
Yes, it can be cut to the bearing surface your equipment requires.
See the PDF technical sheet for the sizes available, or send us the dimensions and weight of your equipment.
