Rubber pads
Vibration isolation pad from the RP family.
Our ribbed rubber anti-vibration pads are designed to reduce minor vibration and noise. Easy to cut and to install without bolting, they suit HVAC equipment, motors, pumps, generators, machine shop equipment and more. With a working range of 15 to 55 psi, they are a reliable solution for acoustic and industrial applications.
| Model | Size (in) | Load at 15 psi (lb) | Load at 55 psi (lb) | At 55 psi (kg) |
|---|---|---|---|---|
| RP2 | 2 x 2 | 60 | 220 | 100 |
| RP3 | 3 x 3 | 135 | 495 | 225 |
| RP4 | 4 x 4 | 240 | 880 | 399 |
| RP6 | 6 x 6 | 540 | 1,980 | 898 |
| RP8 | 8 x 8 | 960 | 3,520 | 1,597 |
| RP12 | 12 x 12 | 2,160 | 7,920 | 3,592 |
| RP18 | 18 x 18 | 4,860 | 17,820 | 8,083 |
Loads per pad, calculated from the 15–55 psi working range. Thickness ⅜" for all sizes.
A rubber vibration isolation pad that goes under mechanical equipment to limit the transmission of vibration to the building.

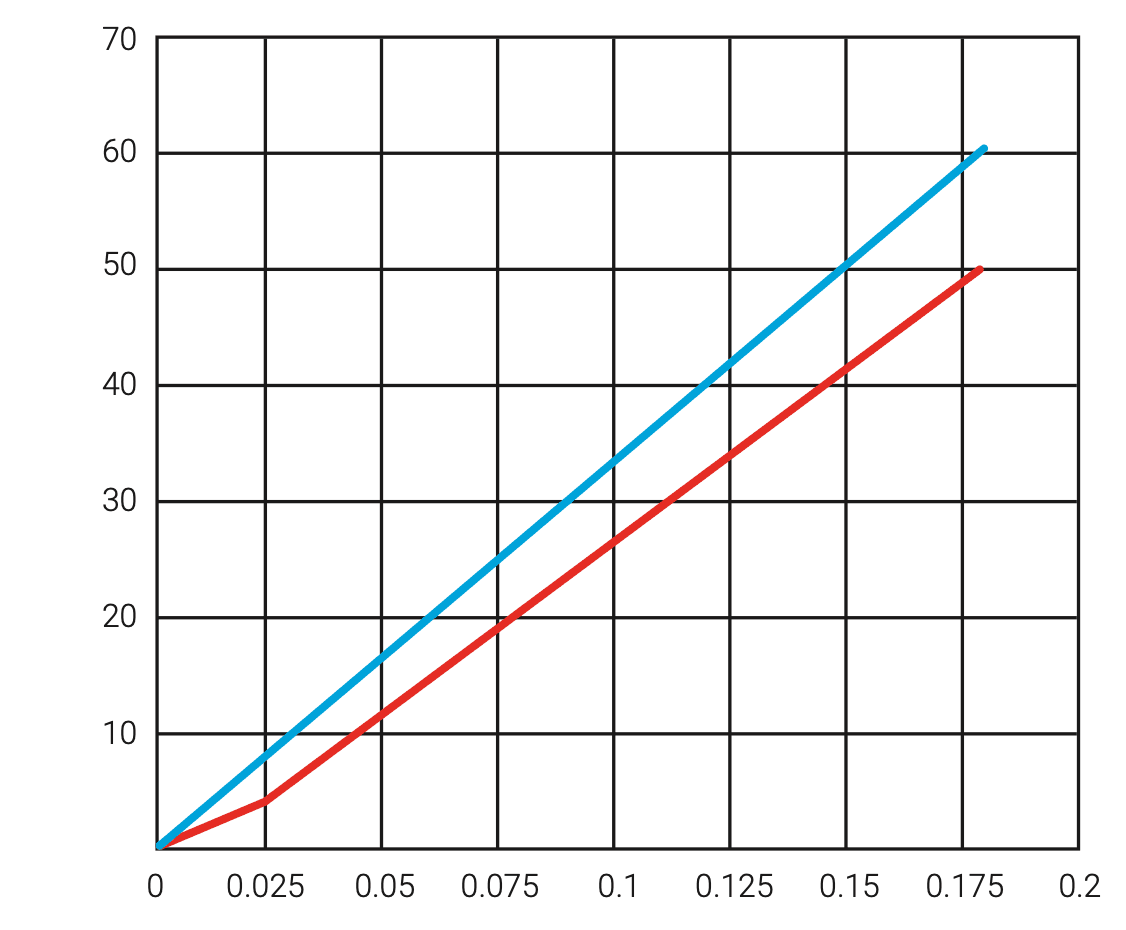

These families differ in surface pattern and load range per square inch. The PDF technical sheets let you compare, based on the weight of your equipment.
Yes, like the other anti-vibration pads, it can be cut to the bearing surface.
Floor-mounted mechanical equipment in plants and mechanical rooms: pumps, fans and small compressors.
