Rubber pads
High-performance (H) variant of the RSR pad, for enhanced vibration damping.

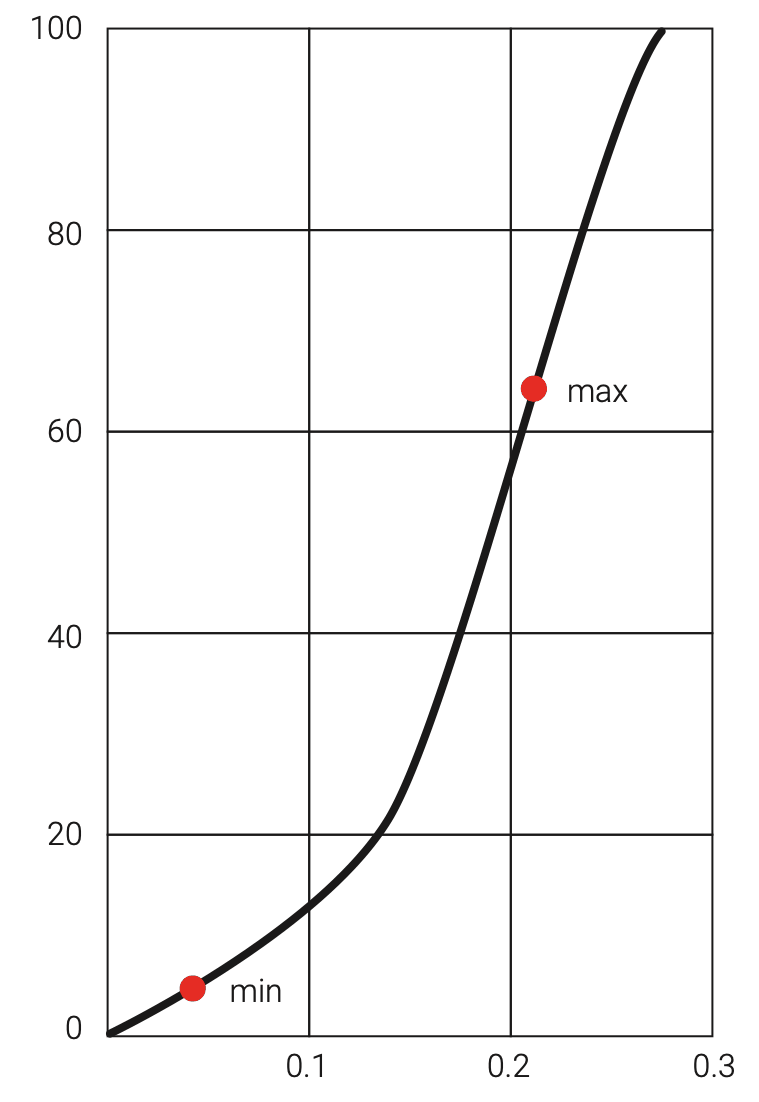

Our RSR-H Series (rubber-steel-rubber) multi-layer rubber pads have a center hole and a steel plate that distributes the load evenly. Maximum load is 60 psi, with a deflection of 0.21 in. They reduce vibration and noise, and the center hole allows bolting when required. Recommended for pumps, motors, air-conditioning units, generators, fans, chillers and cooling towers, and commonly used under pump stands.
Used for pumps, motors, air-conditioning units, generators, fans, chillers and cooling towers.
| Model | Size (in) | Thickness (in) | Hole (in) | Rated load (lb) | (kg) |
|---|---|---|---|---|---|
| RSR-H | 4 x 4 | ⅞ | ⅝ | 800 | 363 |
The “H” stands for the ⅝ in center hole, which allows the equipment to be bolted down when required. The construction and capacity are the same as the RSR Series: 60 psi maximum.
When the equipment has to be bolted to its base: the bolt passes through the center hole of the pad. Without bolting, the RSR Series is enough.
Pumps, motors, air-conditioning units, generators, fans, chillers and cooling towers. It is commonly used under pump stands.
Availability varies. Contact us for a lead time based on the quantity and size required.
