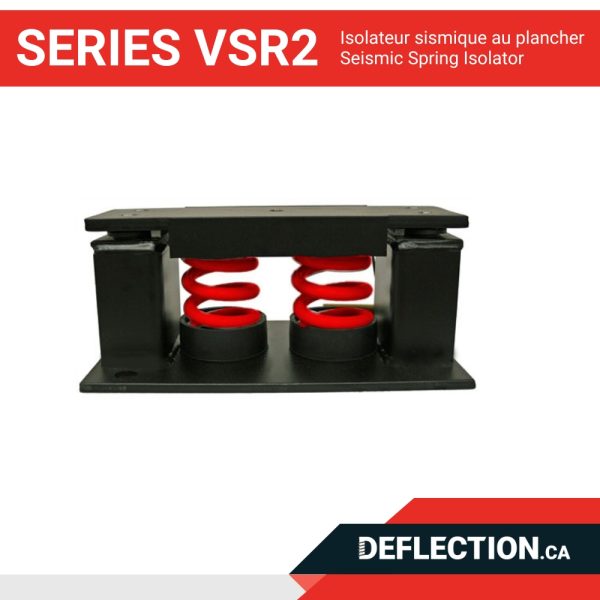

Serie VSR2 – Seismic Floor Isolator

Deflection VSR2 Series Isolators: Stability and High Performance
Deflection VSR2 Series isolators are specially designed to provide effective vibration isolation for a variety of industrial equipment. Made from solid steel with electro-galvanized or powder-coated springs, they incorporate a leveling device and non-slip pads for stable installation. With a load capacity ranging from 400 to 5600 lbs and a deflection of 2 inches, they are ideal for compressors, air handling units, fans, pumps and chillers.

DESCRIPTION

• The enclosures are made of solid steel.
• Springs are made of spring steel, electro-galvanized or powder-coated.
• Incorporate an upgrade device.
• Load capacity from 400 to 5600 lbs.
• Equipped with non-slip rubber pads.
• Color-coded springs for quick and easy identification.
• Supplied with a base plate for installation.
• 2″ deflection.

APPLICATION
Used for a wide range of equipment such as compressors, air handling units, fans, pumps, chillers, cooling towers, etc.

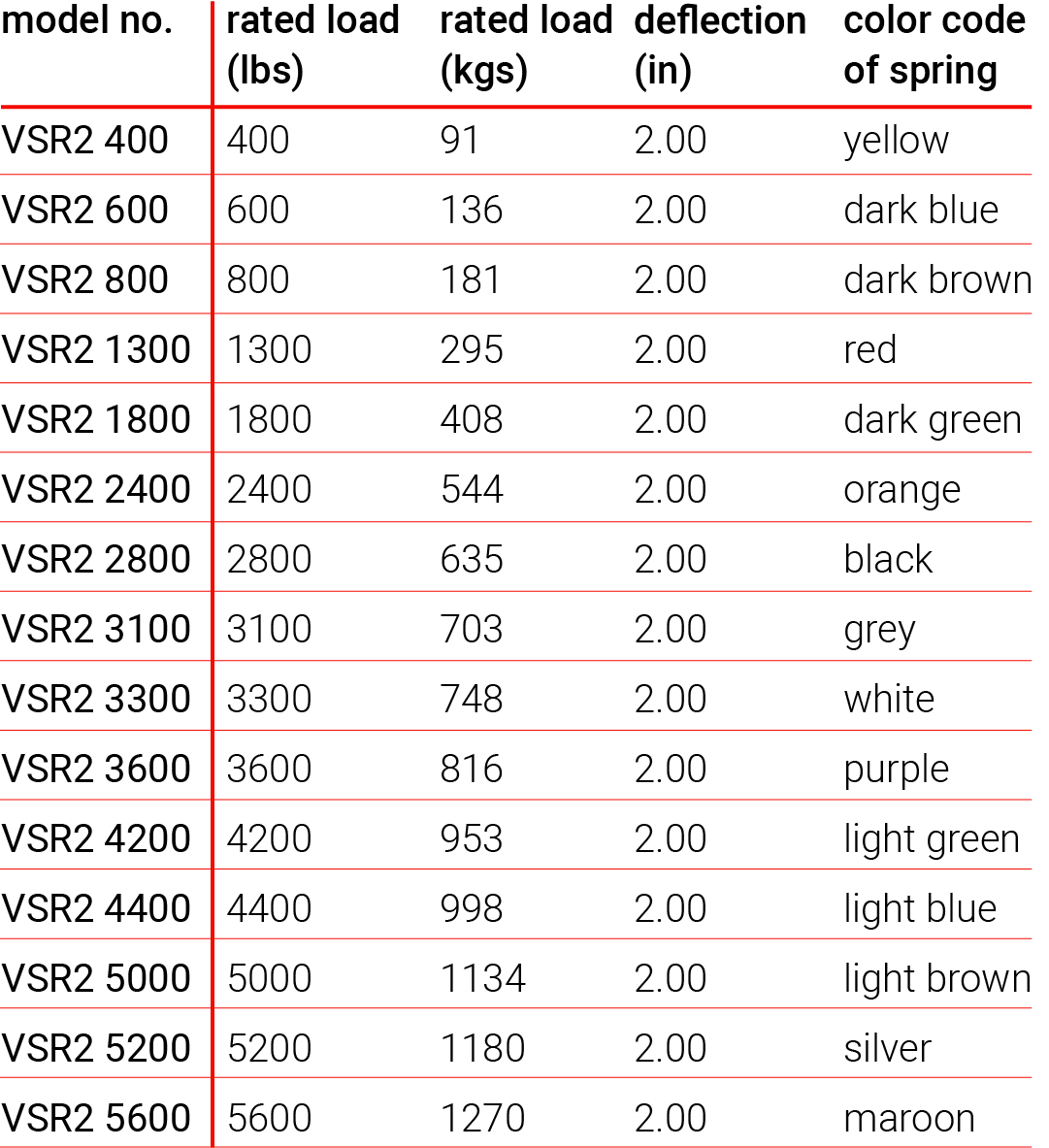

AVAILABLE MODELS
