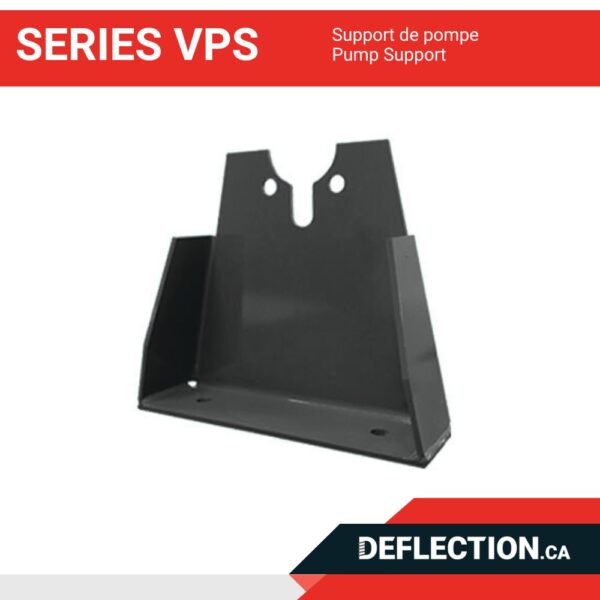

Serie VPS – Pump support

Deflection VPS Series Pump Supports: Enhanced Stability and Protection
Deflection’s VPS Series pump supports are designed to guarantee optimum stability, even under lateral seismic loading. Made from high-strength steel with a powder-coated enamel finish for corrosion protection, they are compatible with ANSI 125 and 150 flange sizes. These brackets, to be installed in pairs on in-line pumps, offer a durable, reliable solution for reducing vibration and extending equipment life.

DESCRIPTION

• Pump supports are designed to withstand a minimum lateral seismic load of 1g for most matches.
• Brackets are made of high-strength, low-alloy steel.
• Bolt holes are positioned to match the dimensions of ANSI 125 cast-iron flanges (classes 125 and 150 use the same bolting pattern).
• Pump supports are powder-coated for corrosion protection.
• The cut-outs are sized to accommodate standard class 150 socket flanges.
• Pump supports must be installed in pairs on in-line pumps.

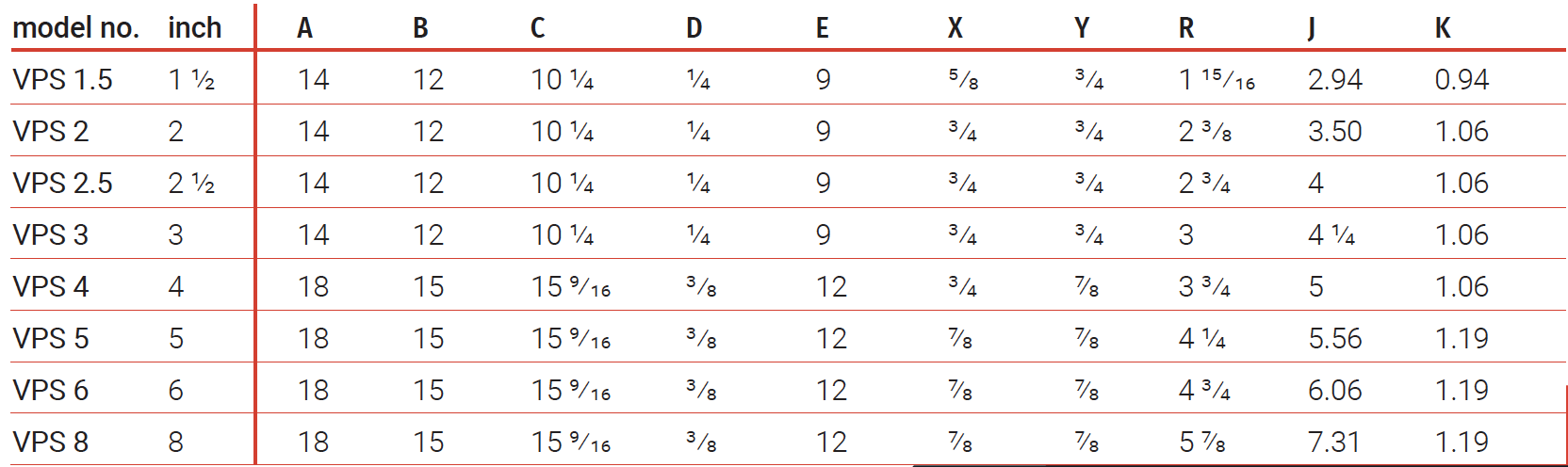

AVAILABLE MODELS
