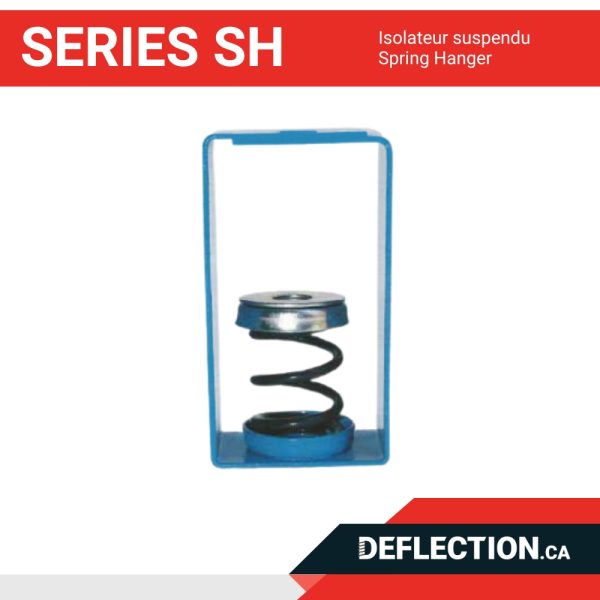

Serie SH – Suspended Isolator

Deflection SH Series suspended isolators are designed to effectively reduce vibration from suspended HVAC equipment. Made from robust steel with high-quality steel springs, they are powder-coated and color-coded for easy identification. Equipped with special rubber washers, they ensure even load distribution and provide durable, reliable insulation.

DESCRIPTION

• Our spring hangers are made of sturdy steel.
• The springs are made of high-quality, high-strength spring steel.
• They are powder-coated and color-coded for easy identification.
• Special rubber washers are supplied to ensure even load distribution.

APPLICATION
Used for a wide range of HVAC equipment such as fan units, air handling units, fans, pumps and chillers.

AVAILABLE MODELS

# model: SH20
rated load (lbs): 20
rated load (kgs): 9
deflection (in): 0.75
color: pink

# model: SH45
rated load (lbs): 45
rated load (kgs): 20
deflection (in): 0.75
color: black

# model: SH70
rated load (lbs): 70
rated load (kgs): 32
deflection (in): 0.75
color: red

# model : SH110
rated load (lbs) : 110
rated load (kgs) : 50
deflection (in) : 0.75
color : blue

# model: SH175
rated load (lbs): 175
rated load (kgs): 80
deflection (in): 1.00
color: brown
